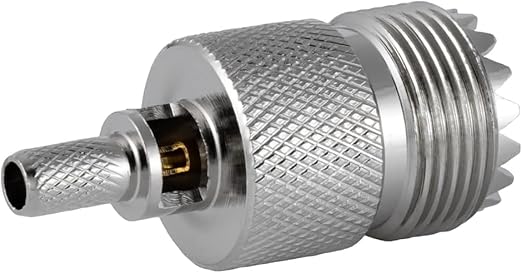

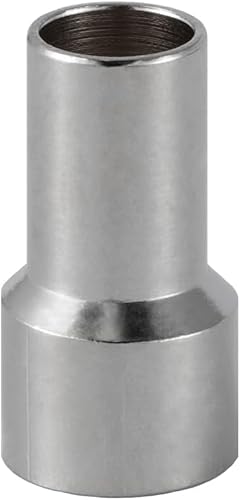

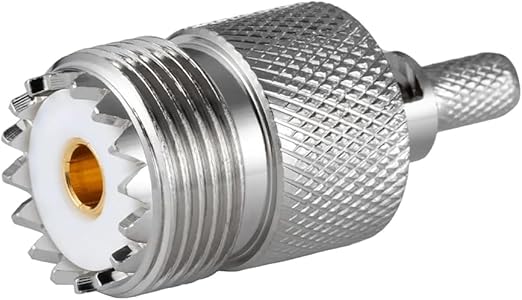

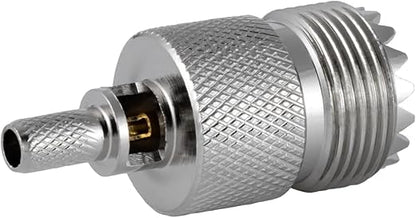

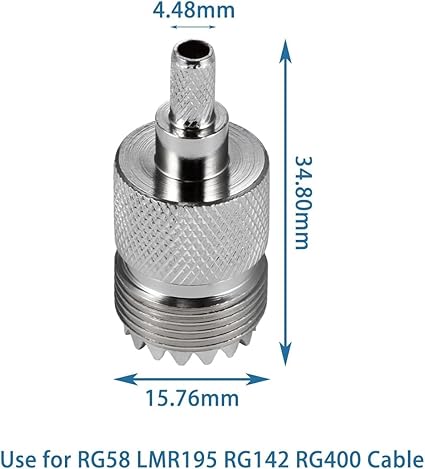

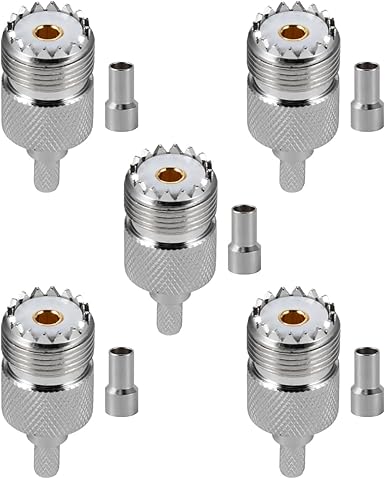

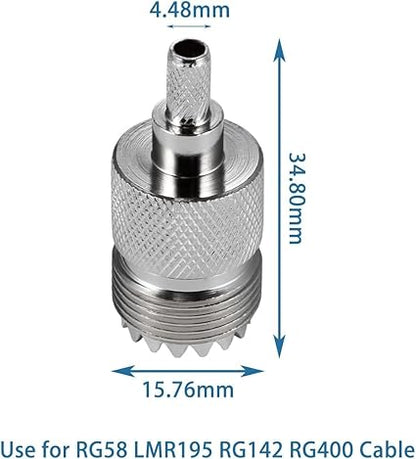

UHF Crimp Connectors SO239 PL259 Female Jack Crimp Coax Adapter PL-259 Connector for RG58 RG142 Cable (Pack of 5)

Specifications of UHF PL259 Female crimp on coax connector 10 pcs of UHF PL259 Female connector Color: gold and silver Material: nickel plated Impedance: 50 ohm, Low-loss Temp range: -65 ～+165℃ (PE Cable -40 ～+85℃) Mounting Type: Free hanging Working Voltage: 335V max Frequency Range: 0-200 MHz Insulation resistance≥ 5000 MΩ Insertion loss≤0.15 dB/6GHz Durability (mating) ≥500 (cycles) Vibration: 100m/s2 (10~500Hz) Peak gain: 0~12dBi VSWR: ≤ 1.2
